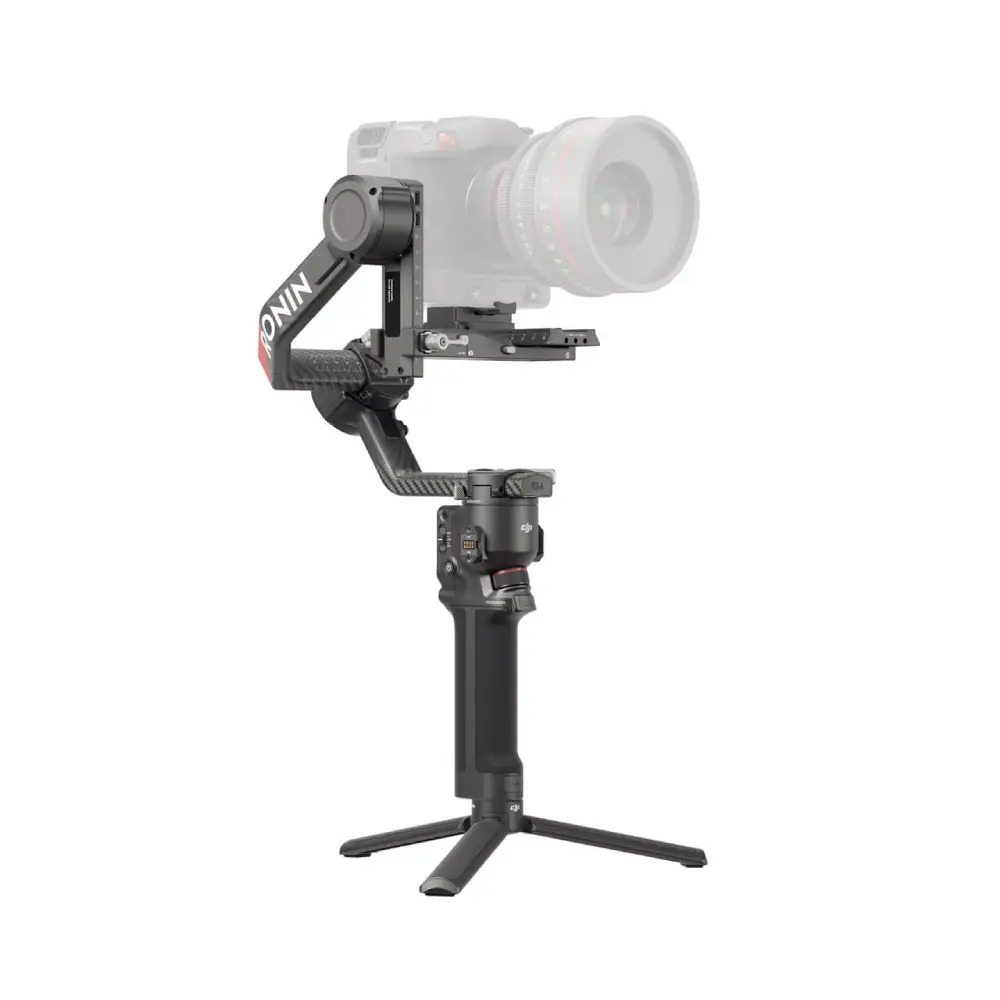

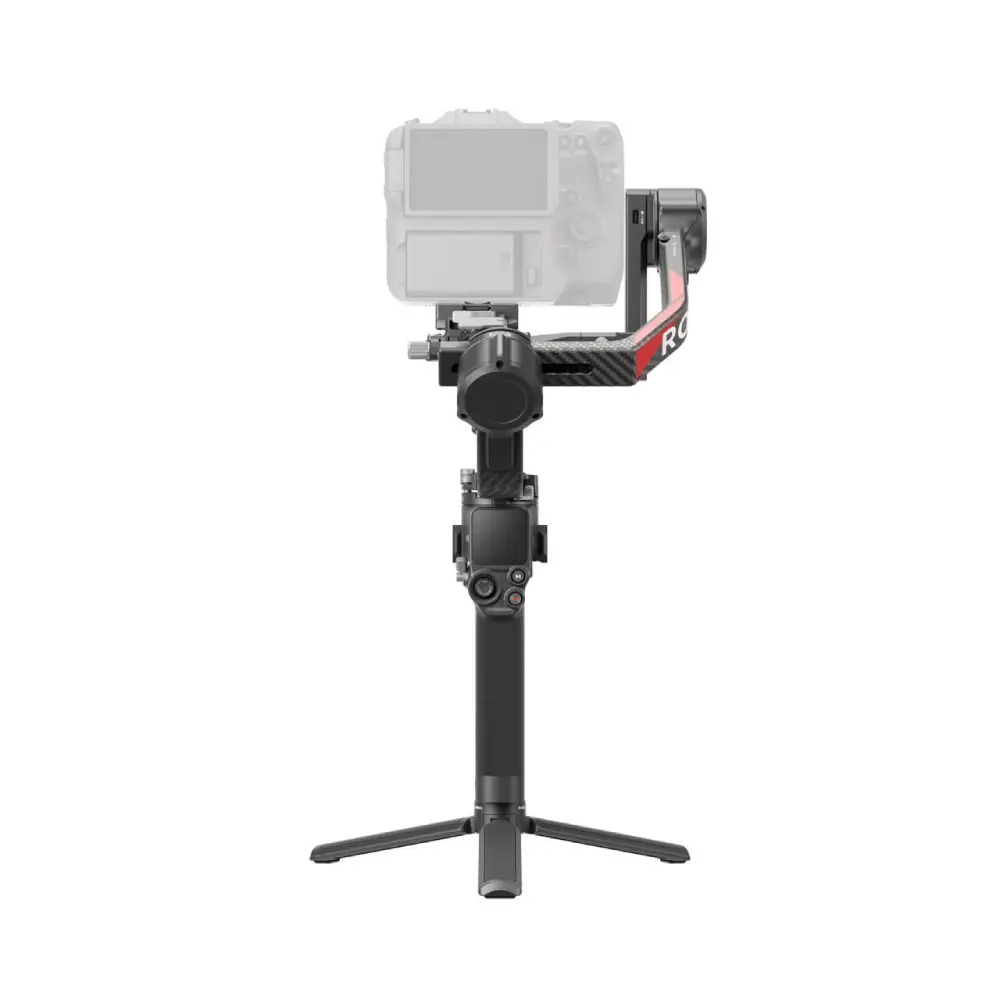

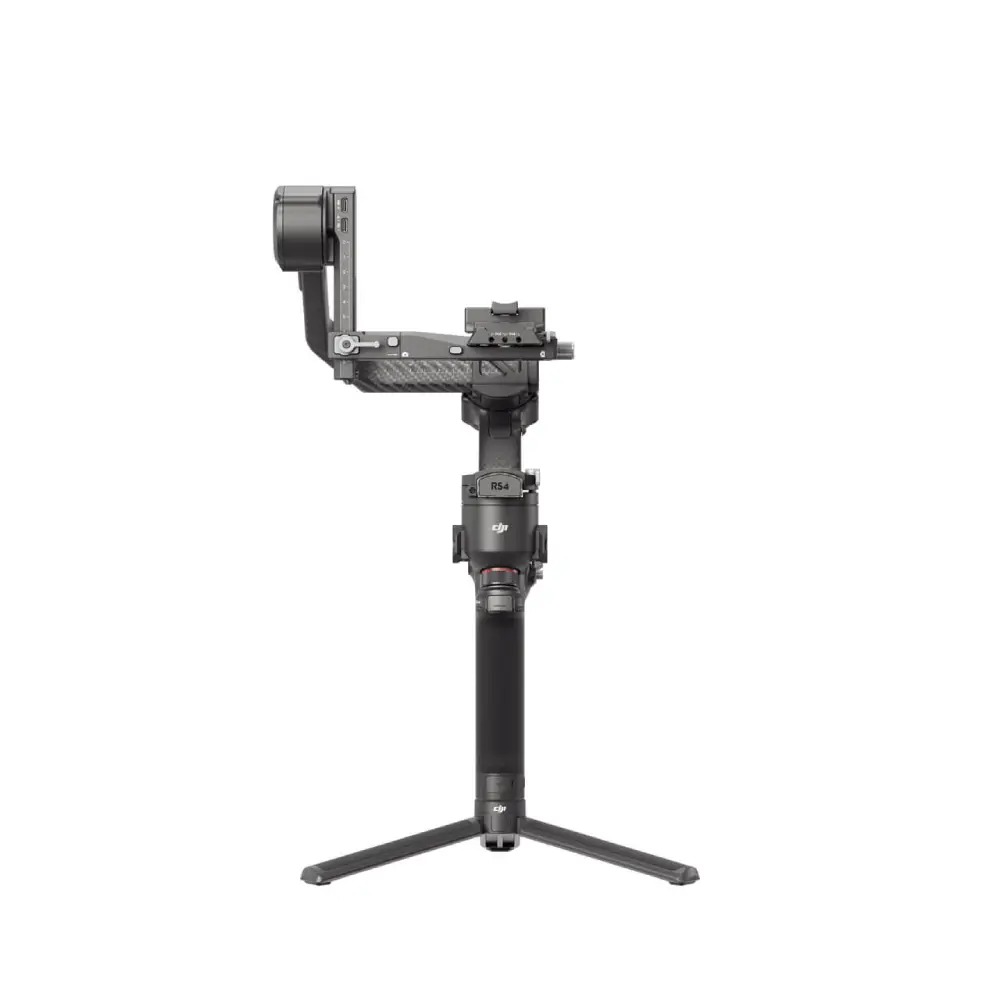

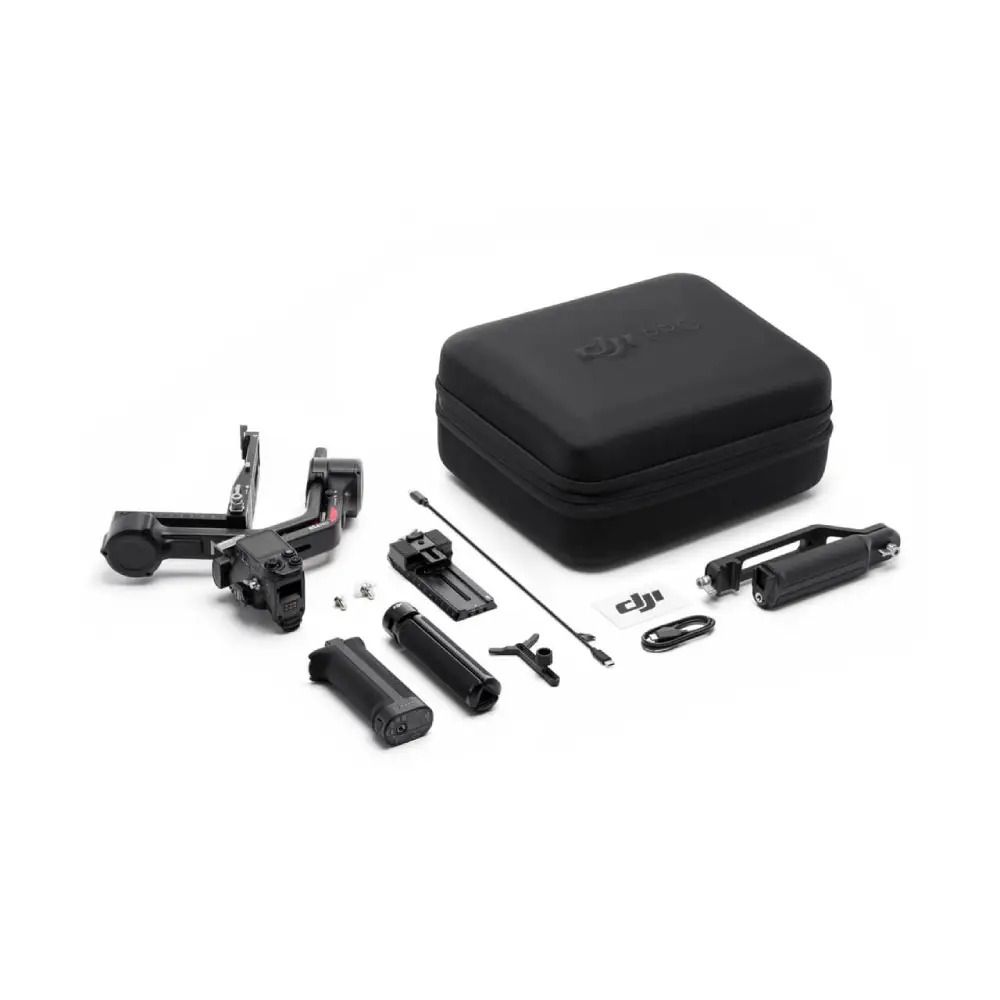

گیمبال دوربین DJI RS 4 Pro Combo Gimbal

ویژگی‌های شاخص:

• تحمل وزن تا 4.5 کیلوگرم
• سازگار با انواع دوربین‌ها و لنزهای حرفه‌ای و آماتور
• سیستم فوکوس پیشرفته‌ی LiDAR
• تثبیت‌کننده‌ی حرفه‌ای با الگوریتم نسل چهارم
• پورت‌های متنوع
• کنترل از راه دور شاتر و لنز با بلوتوث
• انتقال بی‌سیم تصاویر روی مانیتور
• باتری قابل‌شارژ داخلی با حداکثر 29 ساعت شارژدهی

مشخصات فنی

مشخصات فنی

Specs

Peripheral

• Accessory Port
• Ronin Series Accessories (RSA)/NATO Ports
  1/4″-20 Mounting Hole
  ‌Cold Shoe
  Video Transmission/LiDAR Range Finder Port (USB-C)
  RSS Camera Control Port (USB-C)
  Focus Motor Port (USB-C)

• Battery
• Model: BG30-1950mAh-15.4V
  Type: LiPo 4S
  Capacity: 1950 mAh
  Energy: 30 Wh
  Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.)
  Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. ‌It is recommended to use chargers supporting QC 2.0 or PD protocols.)
  Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

• Connections
• Bluetooth 5.1
  Charging Port (USB-C)

• Ronin App Requirements
• iOS 11.0 or above
  Android 8.0 or above

• Languages Supported by the Touchscreen
• English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

• Tested Payload
• 4.5 kg (10 lbs)

• Maximum Controlled Rotation Speed
• Pan: 360°/s
  Tilt: 360°/s
  Roll: 360°/s

• Mechanical Range
• Pan Axis: 360° continuous rotation
  Roll Axis: -95° to +240°
  Tilt Axis: -112° to +214°

Mechanical & Electrical Properties

• Operating Frequency
• 2.40‌‌0-2.4835 GHz

• Bluetooth Transmitter Power
• < 8 dBm

• Operating Temperature
• -20° to 45° C (-4° to 113° F)

• Weight
• ‌Gimbal: Approx. 1242 g (2.74 lbs)
  Grip: Approx. 265 g (0.58 lbs)
  ‌Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
  Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs)

• Dimensions
• ‌Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
  Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)

DJI Ronin Image Transmitter

• Connections
• Power/Communication Port (USB-C)
  HDMI Port (Mini HDMI)
  RSS Camera Control Port (USB-C)

• Expansion Port
• Cold Shoe

• Operating Frequency
• ‌‌2.40‌‌0-2.4835 GHz
  5.725-5.850 GHz

• Weight
• 126 g (0.27 lbs)

• Dimensions
• 82×63×24 mm (L×W×H)

• Transmitter Power (EIRP)
• ‌2.400-2.4835 GHz:
  < 25 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:
< 25 dBm (FCC/SRRC)
< 14 dBm (CE)

• Battery
• Capacity: 2970 mAh
  Compatible Charger: 5 V/2 A
  Charging Time: Approx. 2.5 hours
  Operating Time: Approx. 3.5 hours

• Transmission Range
• 200 m (SRRC/FCC)
  100 m (CE)

‌Measured in an unobstructed environment free of interference.

• Latency
• 60 ms

• Operating Current/Voltage
• 900 mA/3.7 V

• Operating Temperature
• 0°
